I.E Link 100
12V 100Ah Lithium Smart Battery

₹ 25,000₹ 19,000

    • Applications: Home backup, solar storage, small businesses, security systems
    • Key Features: Intelligent monitoring, Smart parallel operation, 5 Yr Warranty, Long life and advanced safety.
    • Wattage: 1280 Watts
    • Capacity: 100 Amp Hours
    • Voltage: 12.8 V (Nominal)
    • Chemistry: LFP
Buy or Enquire

Description

The Indrion Link 100 is an intelligent 12V 100Ah LFP battery engineered to deliver safe, dependable and connected energy storage.

  • Capacity & Applications: 12V, 100Ah LFP battery designed for home backup, solar storage, small businesses and security systems applications.
  • Long Battery Life: Advanced LFP chemistry cells provide 3000+ cycles at 80% DOD and 10+ years of life offering better performance than lead-acid battery.
  • Intelligent BMS: Advanced battery management provides cell monitoring, balancing, fault protection and smart parallel capability.
  • Fast Charging & Power Delivery: Supports 100A max continuous charge/discharge current and peak discharge current of 145A for 25 secs.
  • Built for Indian Conditions: Works reliably from 0°C to 50°C range, suitable for Indian climate; backed by 5-year warranty for peace of mind.
  • Certified: Designed and certified to BIS safety and performance requirements.
  • Inverter Compatibility: Designed for easy integration with standard 12V inverter and UPS systems.
  • Annual Digital Service: Periodic digital health checks, diagnostic reviews and performance assessments help maintain reliability and identify issues early.

Combining long life, intelligent protection and digital service support, the Indrion Link 100 provides reliable power whenever it is needed.

Additional Information

ParameterSpecification
Product NameIndrion Link 100
Battery ChemistryLithium Iron Phosphate (LFP/LiFePO₄)
Voltage Architecture12V class
Primary ApplicationsHome backup, solar storage, small businesses, security systems and telecom infrastructure
Installation TypeStandalone or parallel-connected battery system
Inverter CompatibilityCompatible with supported standard 12V inverters and UPS systems
MaintenanceAnnual digital service recommended
Nominal Voltage12.8V
Nominal Capacity100Ah
Nominal Energy1.28kWh
Cell Configuration4 cells in series (4S)
Battery Operating Voltage Range11.6–14.4V
Product DimensionsTBD after mechanical-design release
Product WeightTBD after production build
Shipping DimensionsTBD
Shipping WeightTBD
Continuous Charge Current80A
Maximum Charge Current100A
Continuous Discharge Current100A
Peak Discharge Current145A
Self-Discharge Rate2% per month
Parallel CapabilityUp to 8 compatible batteries
Series ConnectionNot permitted unless specifically approved
Rated Cycle Life3000+ Cycles
Recommended Depth of Discharge80% DoD at C/3 at 25°C
End-of-Life Criterion80% SOH
Annual Digital ServiceBattery health, diagnostic and performance review
Battery Management SystemIntelligent in-house BMS architecture
Cell-Voltage MonitoringIndividual cell monitoring
Temperature MonitoringCell and power-switching-device temperature monitoring
Current MonitoringCharge and discharge current monitoring
State-of-Charge EstimationSupported
State-of-Health EstimationSupported
Cell BalancingSupported
Cell Overvoltage ProtectionSupported
Cell Undervoltage ProtectionSupported
Pack Overvoltage ProtectionSupported
Pack Undervoltage ProtectionSupported
Charge Overcurrent ProtectionSupported
Discharge Overcurrent ProtectionSupported
Short-Circuit ProtectionSupported
High-Temperature ProtectionSupported
Low-Temperature ProtectionSupported
FET Temperature ProtectionSupported
Temperature-Sensor Fault DetectionSupported
Reverse-Current ProtectionSupported
Cell-Imbalance DetectionSupported
Communication-Fault DetectionSupported
Fail-Safe OperationSupported
Fault LoggingSupported
Event RecordingSupported
Operational Temperature0°C to 50°C
High-Temperature Cut-OffAbove 55°C
Low-Temperature Cut-OffBelow 0°C
Survival Temperature−10°C to +60°C
Service InterfaceWi-Fi or RS485
External Wired CommunicationRS485 with Modbus RTU
Wireless CommunicationWi-Fi
Network CommunicationEthernet or Wi-Fi, where supported
Service CommunicationEthernet or USB, where supported
Parallel Battery CommunicationRS485 with Modbus RTU
Remote MonitoringSupported through connected services
Digital Battery Health CheckSupported
Remote DiagnosticsSupported

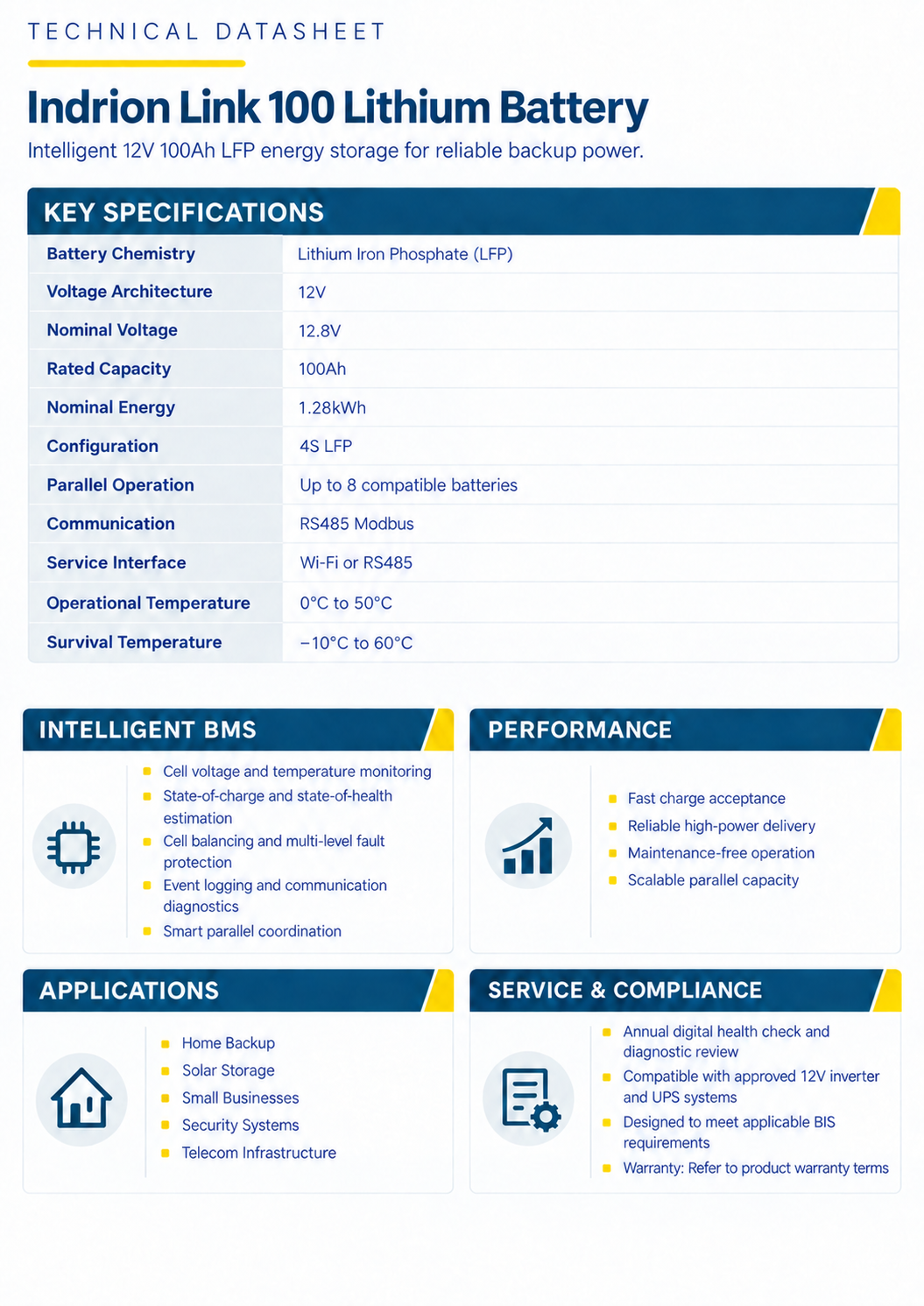

Data Sheet

I.E Link 100
