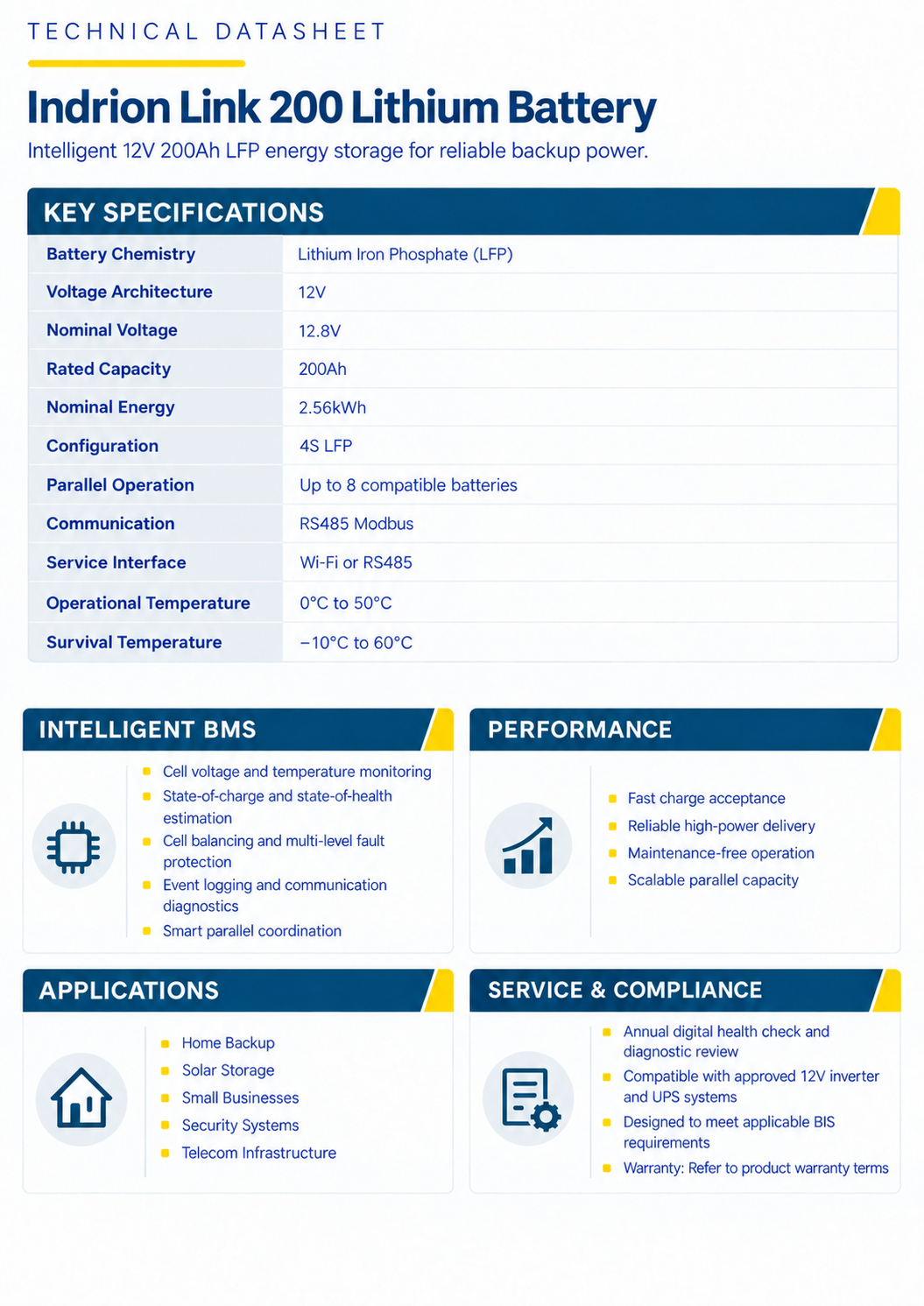

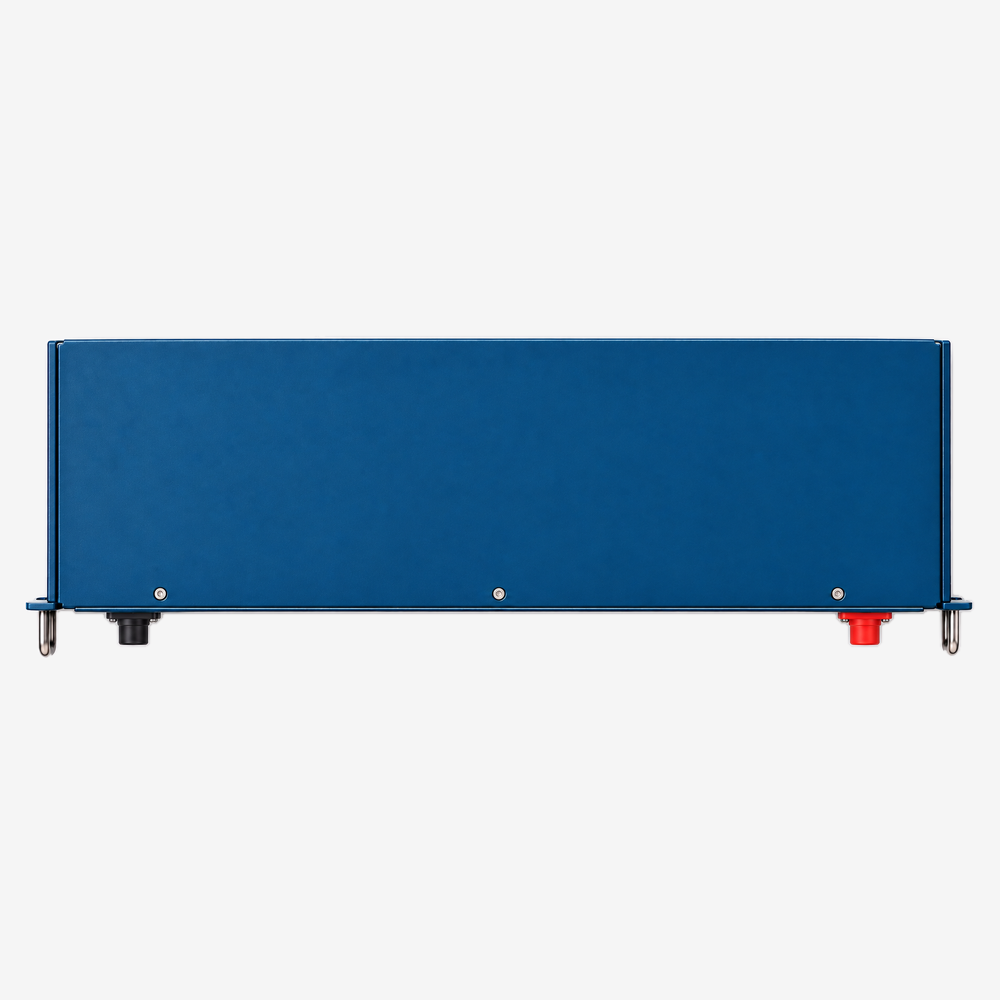

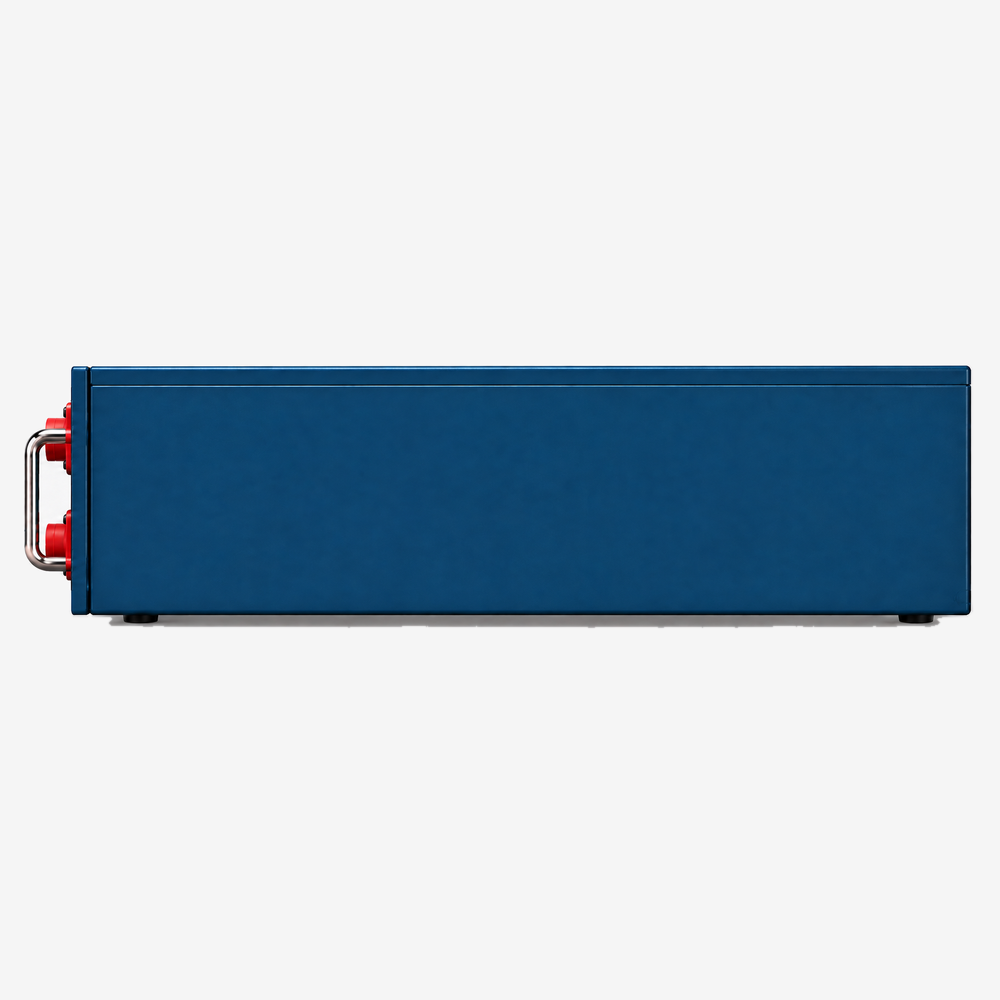

The Indrion Link 200 is an intelligent 12V 200Ah LFP battery engineered to deliver safe, dependable and connected energy storage.
Combining long life, intelligent protection and digital service support, the Indrion Link 200 provides reliable power whenever it is needed.
|
Parameter |
Specification |
|
Product
Name |
Indrion
Link 200 |
|
Battery
Chemistry |
Lithium
Iron Phosphate (LFP/LiFePO₄) |
|
Voltage
Architecture |
12V
class |
|
Primary
Applications |
Home
backup, solar storage, small businesses, security systems and telecom
infrastructure |
|
Installation
Type |
Standalone
or parallel-connected battery system |
|
Inverter
Compatibility |
Compatible
with supported standard 12V inverters and UPS systems |
|
Maintenance |
Annual
digital service recommended |
|
Nominal
Voltage |
12.8V |
|
Nominal
Capacity |
200Ah |
|
Nominal
Energy |
2.56kWh |
|
Cell
Configuration |
4
cells in series (4S) |
|
Battery
Operating Voltage Range |
11.6–14.4V |
|
Product
Dimensions |
TBD
after mechanical-design release |
|
Product
Weight |
TBD
after production build |
|
Shipping
Dimensions |
TBD |
|
Shipping
Weight |
TBD |
|
Continuous Charge Current |
80A |
|
Maximum Charge Current |
100A |
|
Continuous Discharge Current |
100A |
|
Peak Discharge Current |
145A |
|
Self-Discharge Rate |
2% per month |
|
Parallel Capability |
Up to 8 compatible batteries |
|
Series Connection |
Not permitted unless specifically
approved |
|
Rated Cycle Life |
3000+ Cycles |
|
Recommended Depth of Discharge |
80% DoD at C/3 at 25°C |
|
End-of-Life Criterion |
80% SOH |
|
Annual Digital Service |
Battery health, diagnostic and
performance review |
|
Battery
Management System |
Intelligent
in-house BMS architecture |
|
Cell-Voltage
Monitoring |
Individual
cell monitoring |
|
Temperature
Monitoring |
Cell
and power-switching-device temperature monitoring |
|
Current
Monitoring |
Charge
and discharge current monitoring |
|
State-of-Charge
Estimation |
Supported |
|
State-of-Health
Estimation |
Supported |
|
Cell
Balancing |
Supported |
|
Cell
Overvoltage Protection |
Supported |
|
Cell
Undervoltage Protection |
Supported |
|
Pack
Overvoltage Protection |
Supported |
|
Pack
Undervoltage Protection |
Supported |
|
Charge
Overcurrent Protection |
Supported |
|
Discharge
Overcurrent Protection |
Supported |
|
Short-Circuit
Protection |
Supported |
|
High-Temperature
Protection |
Supported |
|
Low-Temperature
Protection |
Supported |
|
FET
Temperature Protection |
Supported |
|
Temperature-Sensor
Fault Detection |
Supported |
|
Reverse-Current
Protection |
Supported |
|
Cell-Imbalance
Detection |
Supported |
|
Communication-Fault
Detection |
Supported |
|
Fail-Safe
Operation |
Supported |
|
Fault
Logging |
Supported |
|
Event
Recording |
Supported |
|
Operational Temperature |
0°C to 50°C |
|
High-Temperature Cut-Off |
Above 55°C |
|
Low-Temperature Cut-Off |
Below 0°C |
|
Survival Temperature |
−10°C to +60°C |
|
Service
Interface |
Wi‑Fi
or RS485 |
|
External
Wired Communication |
RS485
with Modbus RTU |
|
Wireless
Communication |
Wi‑Fi |
|
Network
Communication |
Ethernet
or Wi‑Fi, where supported |
|
Service
Communication |
Ethernet
or USB, where supported |
|
Parallel
Battery Communication |
RS485
with Modbus RTU |
|
Remote
Monitoring |
Supported
through connected services |
|
Digital
Battery Health Check |
Supported |
|
Remote
Diagnostics |
Supported |
